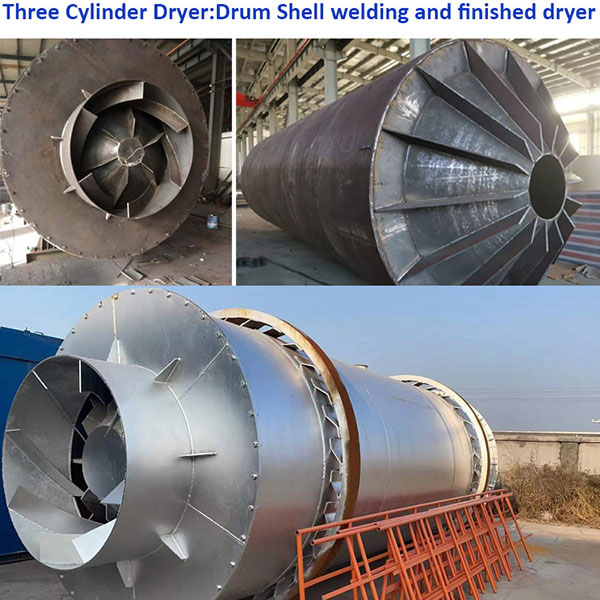

TZSH Three-cylinder Rotary Dryer
TZSH three-cylinder dryer is mainly used for drying a certain humidity and size of granular materials, such as yellow sand used in dry powder and mortar, various specifications of sand used in a foundry industry, blast furnace slag used in building materials and cement industry, clay in a small size , small materials , which have no chemical changes , resists high temperature and are with flyblown dust, used in chemical industry. In accordance with the request of materials and water in different industries , water in materials which are dried can be below 1-0.5%.
TZSH Three-cylinder Rotary Dryer Description
The materials which enter into dryers should not stick on cylinder wall and feeding plates. The gas temperature which is into the dryer should be less than 750 degree. If it requests being dried in higher temperature , the inner cylinder at the entrance of the dryer can be made of steel plate .
TZSH Three-cylinder Rotary Dryer Data Sheet
| ITEM MODEL | 2.6*6.0 | 2.6*7.0 | 2.8*7.0 | 3.0*7.0 | 3.2*7.0 | 3.6*8.0 | 3.8*10.0 | 4.0*12.0 | |
| Diameter of Outer Cylinder | m | 2.6 | 2.6 | 2.8 | 3 | 3.2 | 3.6 | 3.8 | 4 |
| Length of Outer Cylinder | m | 6 | 7 | 7 | 7 | 7 | 8 | 10 | 12 |
| Cylinder Volume | m³ | 31.84 | 31.84 | 36.93 | 52.68 | 56.27 | 81.38 | 113.35 | 150.72 |
| Cylinder Speed | rpm | 4-10 | |||||||
| Intital Moisture of Slag | % | 10-12 | |||||||
| Final Moisture of Slag | % | 1 | |||||||
| Intital Moisture of Yellow Sand | % | 8-10 | |||||||
| Final Moisture of Yellow Sand | % | 0.5-1 | |||||||
| Max inlet Temperature | °C | 700-750 | |||||||
| Production Capacity | (T/H) | 25-28 | 26-29 | 28-32 | 40-45 | 42-46 | 55-65 | 70-80 | 80-90 |
| (T/H) | 25-30 | 26-32 | 30-35 | 45-48 | 45-50 | 60-70 | 80-90 | 90-100 | |
| Motor Model Number | Y132-S-4 | Y132-S-4 | Y132-M-4 | Y160-M-4 | Y160-M-4 | Y160-M-4 | Y280-S-4 | Y280-S-4 | |
| Motor Power | Kw | 5.5*4 | 5.5*4 | 7.5*4 | 11*4 | 11*4 | 15*4 | 90 | 110 |
| Reducer Model Number | XWD6-23 | XWD7-23 | ZSY315-II | ZSY355-II | |||||
| Reducer Ratio | 29 | ||||||||
